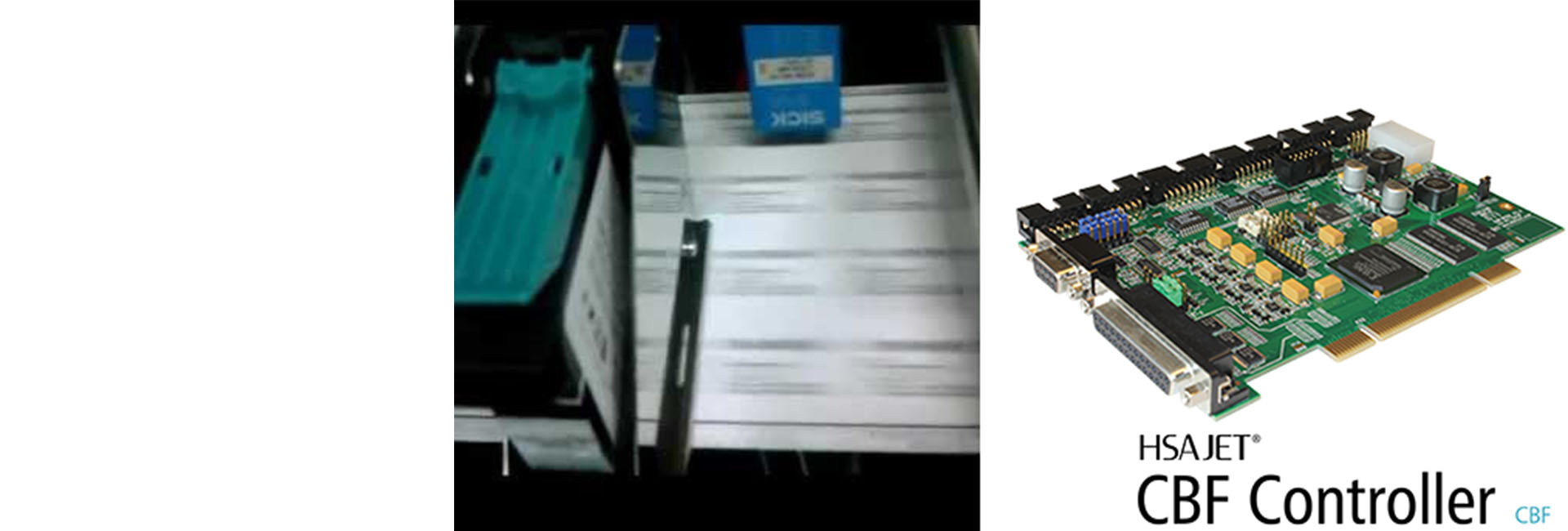

• The CBF is available as a board for integration but HSA Systems also offers 2 versions of pre-configured windows based controllers. The Office style Printer Controller (OPC) in either 2” or 4” print height version, and the Rack style Printer Controller (RPC) in 6” or 8” print height version.
• Suitable for various industries from mailing, graphics, to coding and marking.

• Each CBF is PCI based and can control up to 2” of print height. For additional print height more controller boards can be installed providing up to 8” print height from one controller.

• Each CBF has encoder, sensor and serial connection. Ethernet communication is made through the PC's LAN. If required the printers can be controlled remotely via our comprehensive communication protocol. The CBF boards can be configured to control up to 8 output signals for external equipment.

• A variety of printheads are available for side as well as down-print applications.
• With a CBF based solution there is full freedom in head offset as well as high accuracy in X and Y stitching. The combination of hardware and software provides a powerful printing solution for integration as well as turnkey applications.

• Our controller boards solutions allows printing directly from various database file formats, such as *.sql *.mdb, *.xls and *.csv. Or you can connect directly to database servers as well.
