1

Simple Maintenance

  • 10.4 inch touch panel can be removed from the machine, with an extendable cable up to 3.5 meter.
  • You can control the machine remotely when operating or maintenance. This will be extremely useful when user wants to have a single control station, or controlling the machine during the maintenance.
2

Small Printhead Dimension

  • Small printhead dimension making it easy to install even in the most narrow production space or area.
  • L-Type printhead also available for even more space demanding installation spaces.
  • The same easy-to-maintain philosophy is adopted for the printhead. Nozzle capping mechanism and auto circulation timer function are available to prevent ink clogging the nozzle even during long term storage.
3

Intuitive Software Design for User Interface Operation

  • Using Icons and colour codes with good visibility to enable intuitive operation.
  • Illustrations and animation are displayed in the screen so that it is visually easy and quick to understand when using the machine.
  • Inner structure of printhead and controller are presentable during maintenance procedures, to shortened the learning curve of understanding and maintaining the machine.
4

Nozzle Capping Mechanism

  • Nozzle is capped or closed in air tight condition to prevent nozzle clogging or dying. This technology significantly reduces the amount of printhead maintenance.

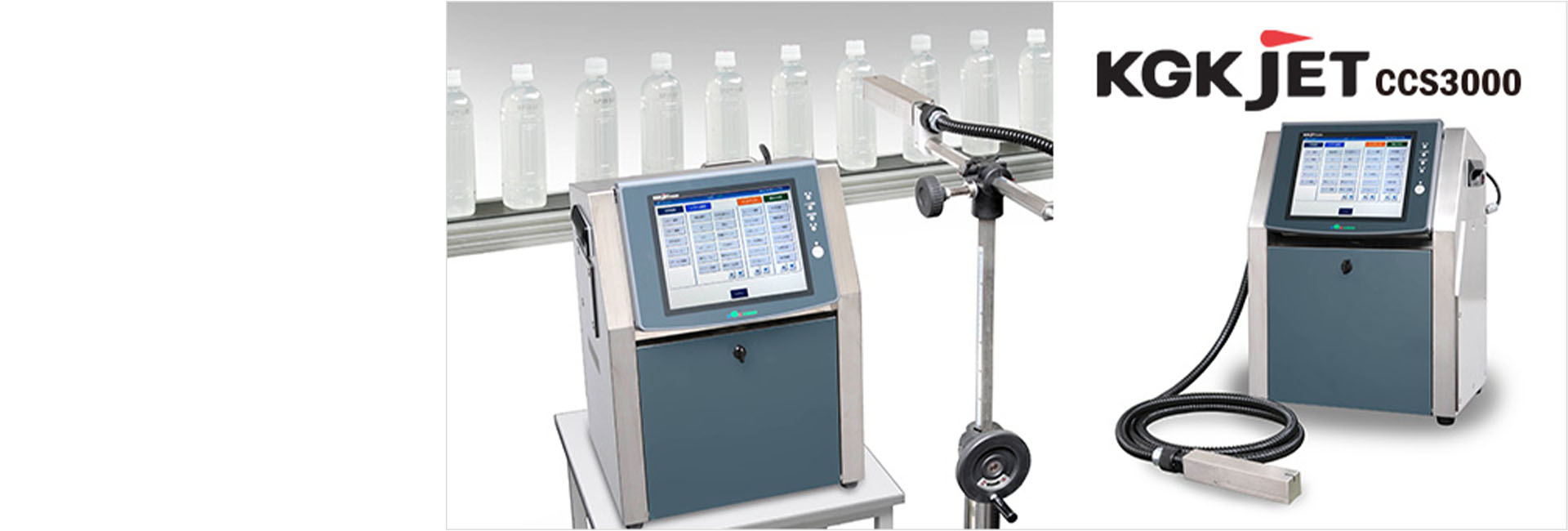

KGK - CCS-3000
