HSA - TCUF/TCUF-INT
Designed for large scale deployment with simple high-res printing

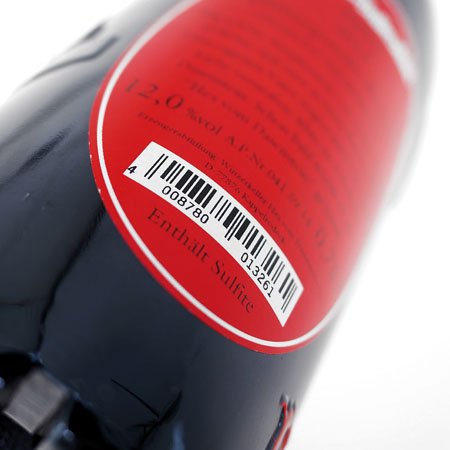

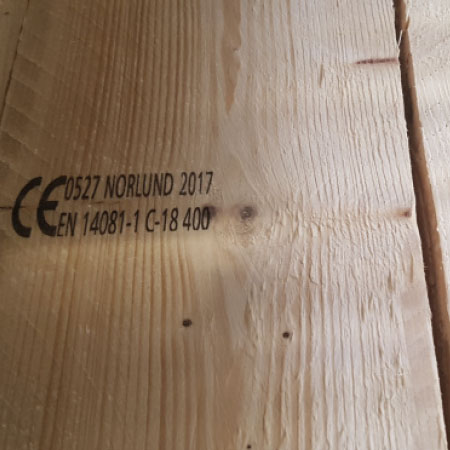

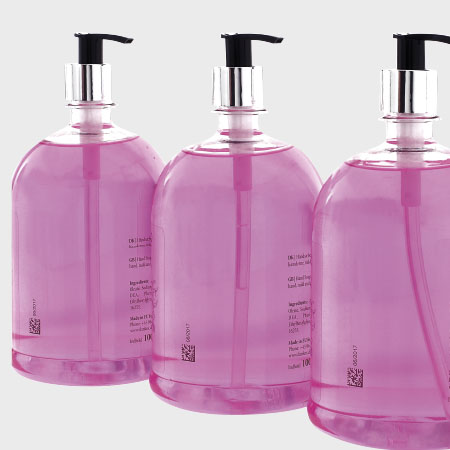

Print Sample
1

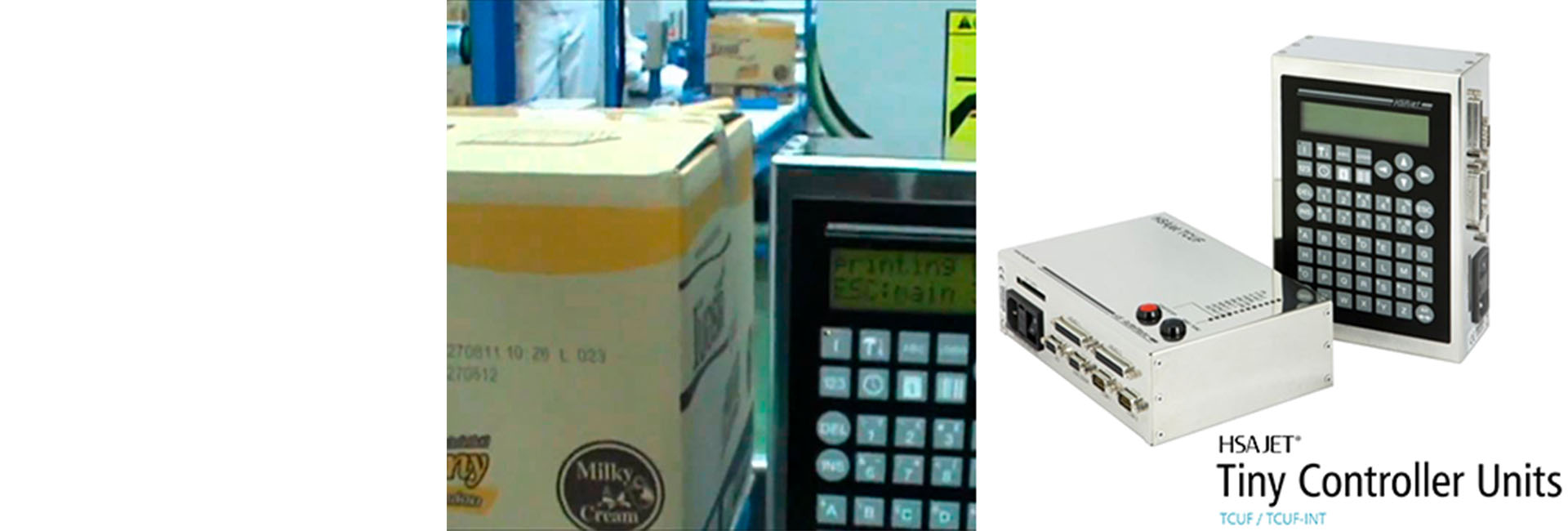

HSAJET® TINY CONTROLLER UNIT
- The HSAJET® Tiny Controller Units are the ideal printing solution for small messages, i.e. for printing text, barcode, counters, date/time and graphics. Ideal for integration on webs, inserters and other equipment.
- It is a very compact solution and calls for minimum maintenance. Consequently, no special training is required to operate and maintain the HSAJET® TCUF.
- The design is made in stainless steel and can easily be implemented in production areas.
2
TCUF WITH OPTIONAL EXTERNAL KEYBOARD OR PRINT SELECTOR
- The TCUF standard solution has no keyboard, but is still very easy to use.
- One print job can be saved on a CF card and will automatically be loaded once you turn on the TCUF.
- For easy selection of different print jobs and input of text prompts, you can use a message selector switch, which can hold up to 12 print jobs, or connect an external keyboard, which can administrate even more print jobs.
3
TCUF WITH INTEGRATED KEYBOARD
- The TCUF-int has an integrated keyboard and display. You can insert a CF card with multiple jobs and select jobs directly from the keyboard.
